Modify a boundary condition value

For fixedValue-family patches (including noSlip, inletOutlet), volume fields expose the patch’s stored value buffer through the same __getitem__ interface used for the internal field. np.asarray on the result is a zero-copy view, so any in-place edit lands inside the patch field; pybFoam.write() then serialises both the internal field and the modified boundary back to 0/<field>.

This how-to changes the lid velocity of the cavity case from the shipped uniform (1, 0, 0) to (2.5, 0, 0), and then to a non-uniform parabolic profile.

Warning

The recipe does not safely modify zeroGradient, mixed or calculated patches — see the Limitations section at the bottom for the failure modes and the on-disk workaround.

Prerequisite: finished Modify initial conditions of the cavity case.

Set up case + mesh

from pybFoam import Time, argList, clone_example, dictionary, fvMesh
from pybFoam.meshing import generate_blockmesh

case = clone_example("cavity")
time = Time(argList([str(case), "-case", str(case)]))
generate_blockmesh(time, dictionary.read(str(case / "system" / "blockMeshDict")))
mesh = fvMesh(time)

Inspect the patches

mesh.boundary() (the fvBoundaryMesh) lists every patch that came out of the mesher. Names match what the field’s boundaryField references.

boundary = mesh.boundary()
print(f"{'patch':<16s}{'faces':>6s}")
for i in range(len(boundary)):
    patch = boundary[i]
    print(f"{str(patch.name()):<16s}{patch.size():>6d}")

patch            faces
movingWall         100
fixedWalls         300
frontAndBack         0

Check the BC type before editing

Whether a NumPy edit on U["patchName"] will persist depends on the underlying BC type — and pybFoam doesn’t currently bind a boundary_type() accessor. The reliable workaround is to parse 0/U itself as an OpenFOAM dictionary and read the type entry of each patch’s sub-dict.

from pybFoam import Word

SAFE_TO_EDIT = {"fixedValue", "noSlip", "inletOutlet", "movingWallVelocity"}

U_dict = dictionary.read(str(case / "0" / "U"))
bc_block = U_dict.subDict("boundaryField")

print(f"{'patch':<16s}{'BC type':<24s}{'edit via NumPy?'}")
for i in range(len(boundary)):
    name = str(boundary[i].name())
    if not bc_block.found(name):
        continue
    bc_type = str(bc_block.subDict(name).get[Word]("type"))
    safe = "yes" if bc_type in SAFE_TO_EDIT else "NO — see Limitations"
    print(f"{name:<16s}{bc_type:<24s}{safe}")

patch           BC type                 edit via NumPy?
movingWall      fixedValue              yes
fixedWalls      noSlip                  yes
frontAndBack    empty                   NO — see Limitations

Read U and look at the lid patch

Indexing the field with a patch name returns the Field<vector> for that patch; np.asarray is a zero-copy view. Because movingWall is fixedValue, edits to that view land in the stored patch buffer.

import numpy as np

from pybFoam import volVectorField

U = volVectorField.read_field(mesh, "U")

lid = np.asarray(U["movingWall"])
print(f"movingWall : shape={lid.shape}   first row={lid[0]}")

movingWall : shape=(100, 3)   first row=[1. 0. 0.]

Edit 1 — bump the uniform lid velocity

A uniform fixedValue patch carries one value per face. The shipped IC has all faces at (1, 0, 0); we raise it to (2.5, 0, 0).

lid[:, 0] = 2.5
lid[:, 1] = 0.0
lid[:, 2] = 0.0

print(f"after edit : first row={lid[0]}   max u_x={lid[:, 0].max():.3f}")

after edit : first row=[2.5 0.  0. ]   max u_x=2.500

Write the field back to disk

pybFoam.write() serialises both the internal field and every patch field. We re-read the file to prove the change persisted.

from pybFoam import write

U.correctBoundaryConditions()
write(U)

# Confirm the modified value reached the on-disk file by grepping
# the rendered patch entry.
written = (case / "0" / "U").read_text()
moving_block_start = written.find("movingWall")
print(written[moving_block_start : moving_block_start + 150])

movingWall
    {
        type            fixedValue;
        value           uniform (2.5 0 0);
    }
    fixedWalls
    {
        type            noS

Edit 2 — non-uniform parabolic lid

A patch field is just a contiguous buffer, so any spatial profile works. Use the patch face centres (mesh.boundaryMesh()[id].Cf() is the OpenFOAM API; we approximate via per-face position from the mesh) — for the unit-cavity setup we know the lid spans x ∈ [0, L] and the entries are stored in face order. We give the face index a normalised coordinate ξ ∈ [0, 1] and apply a parabola that vanishes at the corners.

n_faces = lid.shape[0]
xi = np.linspace(0.0, 1.0, n_faces)
parabola = 4.0 * xi * (1.0 - xi)  # 1 at midpoint, 0 at corners

lid[:, 0] = parabola  # u_x ∈ [0, 1]
lid[:, 1] = 0.0
lid[:, 2] = 0.0

print(f"parabolic lid : u_x range = {lid[:, 0].min():.3f} … {lid[:, 0].max():.3f}")

U.correctBoundaryConditions()
write(U)

parabolic lid : u_x range = 0.000 … 1.000

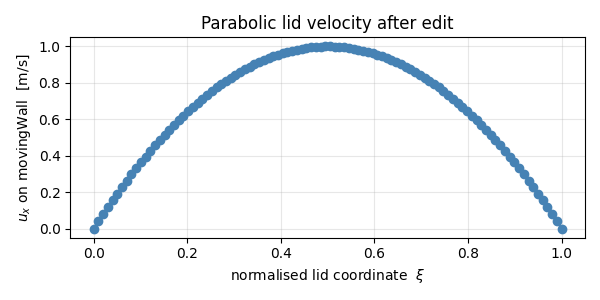

Plot the lid profile

A 1-D matplotlib plot of u_x along the lid is the cheapest way to verify the parabolic edit took effect.

import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(6, 3))
ax.plot(xi, np.asarray(U["movingWall"])[:, 0], "o-", color="steelblue")
ax.set_xlabel(r"normalised lid coordinate  $\xi$")
ax.set_ylabel(r"$u_x$ on movingWall  [m/s]")
ax.set_title("Parabolic lid velocity after edit")
ax.grid(alpha=0.3)
fig.tight_layout()
plt.show()

Limitations: which BC types tolerate NumPy edits

The recipe above works because np.asarray(U["patchName"]) hands back a reference to boundaryFieldRef()[patchID] — the patch’s visible value buffer. What that buffer represents depends on the BC type:

• fixedValue (and subclasses noSlip, inletOutlet, movingWallVelocity, …) store the value field directly. In-place edits persist; correctBoundaryConditions() keeps them. ✓

• zeroGradient and calculated carry no independent value storage — the buffer is an ephemeral cache that the BC’s updateCoeffs() overwrites with the extrapolated internal value on every evaluation. Edits are silently lost. ✗

• mixed (and slip, partialSlip, directionMixed) blend three storage fields — refValue, refGrad, valueFraction — into the visible value. None of those three are exposed to Python; editing the blend has no effect on the underlying components and is wiped on the next evaluate(). ✗

Workaround for unsupported types. The on-disk 0/<field> file is just an OpenFOAM dictionary, and dictionaries are fully round-trippable from Python (see Read, modify, and write OpenFOAM dictionaries). Edit the patch’s value / refValue / valueFraction entries there, then re-read the field. For example, to change a zeroGradient outlet to a fixedValue of zero pressure:

field_dict = dictionary.read(str(case / "0" / "p"))
outlet = field_dict.subDict("boundaryField").subDict("outlet")
outlet.set("type", Word("fixedValue"))
outlet.set("value", scalarField([0.0]))   # uniform 0
field_dict.write(str(case / "0" / "p"))
# then re-read the field for the new BC to take effect

Replacing a BC type at runtime through the existing in-memory field (without going via disk) is not yet supported — it would require binding fvPatchField<T>::New() and boundaryFieldRef().set() (TODO in pybFoam_core).
